AVXB - AV909
Downloads


Specification


AVXB Specification

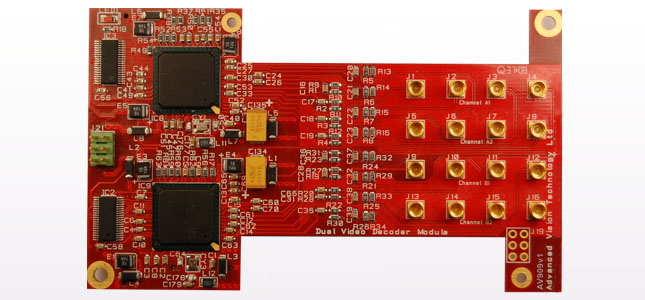

The AV909 is a Dual video decoder, AVXB expansion card. The AV909 utilises two Philips SAA7118 video decoder, which supports a wide variety of analogue inputs. Using both decoders up to 16 inputs can be utilised. As the 16 inputs are shared between 2 video decoders simultaneous capture of 2 channels is possible

Features

High performance SAA7118E video decoders.
Up to 16 analogue CVBS inputs.
Up to 16 Y+C inputs.
Up to 4 analogue component inputs embedded or separate syncs.
Supports PAL, NTSC and SECAM standards.

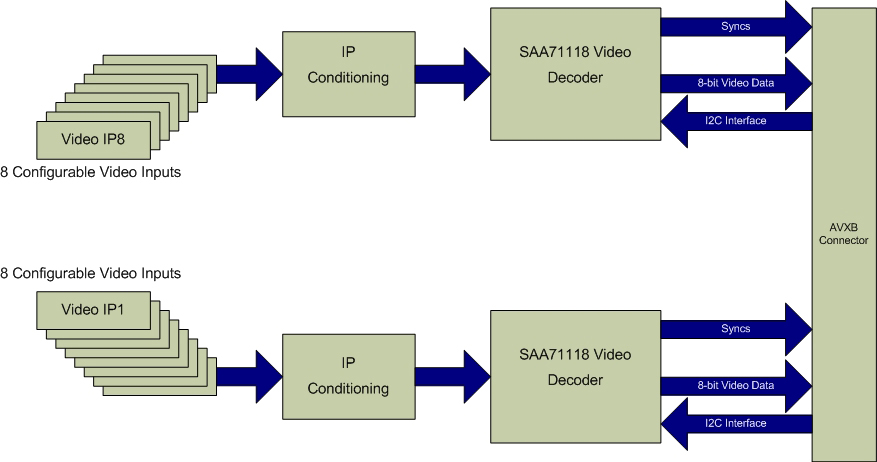

 AV909 Block Diagram
Click to view full image in new window
