AVXB Specification

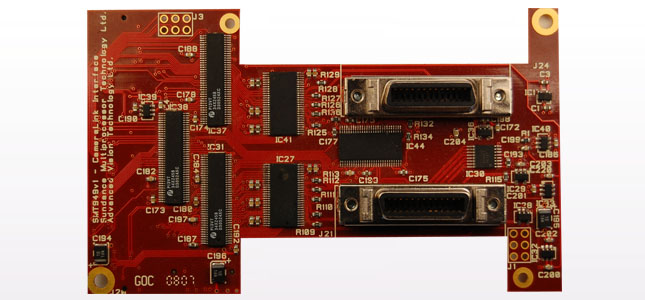

The AV949 is a Camera Link interface AVXB expansion card. The AV949 provides a Base, Medium and Full configuration Camera Link Interfaces through 2x 3M MDR connector. The interface also implements two serial interfaces between the card and the camera (one to the camera, one from the camera) as well as the four control lines to the camera.

Features

National Semiconductors DS90CR288A receiver.
Dual Base Camera Link.
Single Medium or Full Camera Link.
Up to 85 MHz clock support.

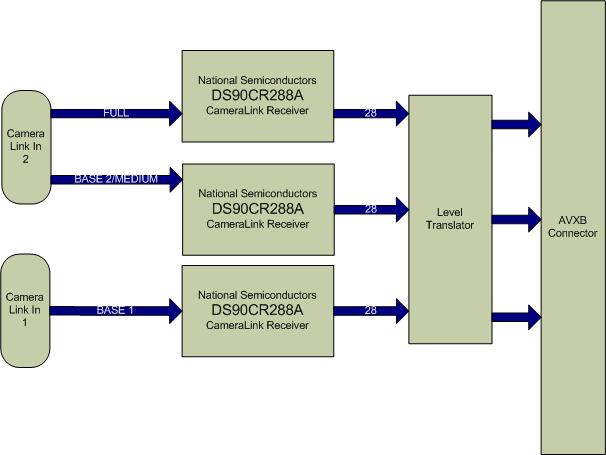

 AV949 Block Diagram
Click to view full image in new window
