Image Processing Systems - AV800



AVXB Specification

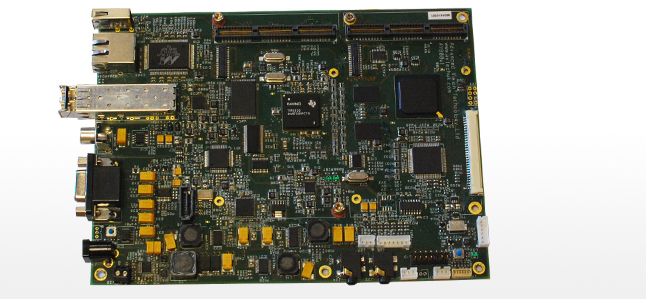

The AV800 is a expandable DSP based processing board capable of accepting two Advanced Vision Expansion Boards (AVXBs). It can either function as an intelligent display driver capable of driving most LCD panels, or used as a stand alone embedded image processing system.


Texas Instruments DM6467 Processor
FPGA for image pre/post processing.
SFP expansion slot for fibre / copper links
SATA Interface for video storage
H.264 encode/decode capability
Video encoder for various VGA/CVBS output formats.
Two AVXB Interfaces for further expansion.
 AV800 Block Diagram
Click to view full image in new window
