AVXB Specification
s

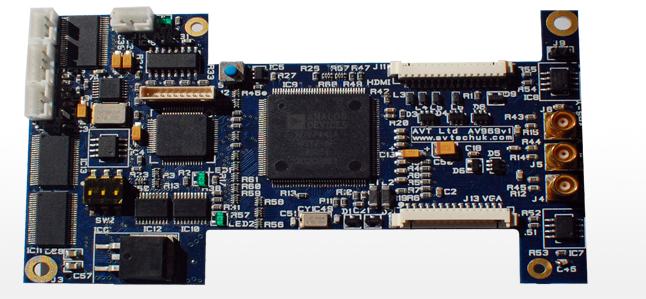

The AV969 is a Multi Video format video interface AVXB expansion card. The card offers HDMI1.3, DVI 1.0 and RGB decoding at resolutions up to 16001200 at 60 Hz (UXGA) and 720p-/1080i-/1080p component, 525p-/625p progressive and (625i/525i) interlaced HD formats. The card has three analogue video inputs either composite, component or S-Video supporting PAL, NTSC and SECAM formats.

Features

Analogue Devices ADV7441 SDTV/HDTV Video Decoder.
ADC sampling rates up to 170 MHz.
165/225 MHz HDMI receiver.
I2S audio support.

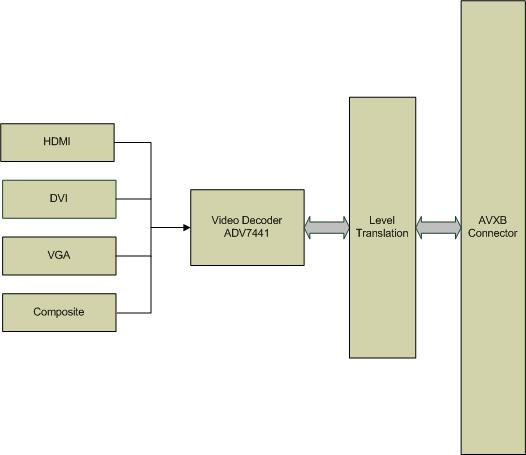

 AV969 Block Diagram
Click to view full image in new window
