Our custom LCD displays can be configured for a wide variety of applications with character, custom icon, and graphical options. Features such as high contrast, wide viewing angle, low power operation, touch screen, low/high operating temperature range and other options are available. Examples of custom display solutions; VT220 / VT320 emulation, SoftKey touch screen interfaces, general multi-format displays and computer controlled graphical terminals with touch screen capability. These solutions are all designed in an rugged aluminum casing for industrial, automotive and military applications.
VT220 / VT320 Terminal emulator (AV6311-104-RM1)
These displays have a keyboard and a computer RS232 interface that allows commands from a CPU to be interpreted and displayed on the 10.4” colour LCD display. The display has an LED backlight and an output pixel resolution of 640x480 pixels which is capable of displaying up to 80 characters by 24 lines.

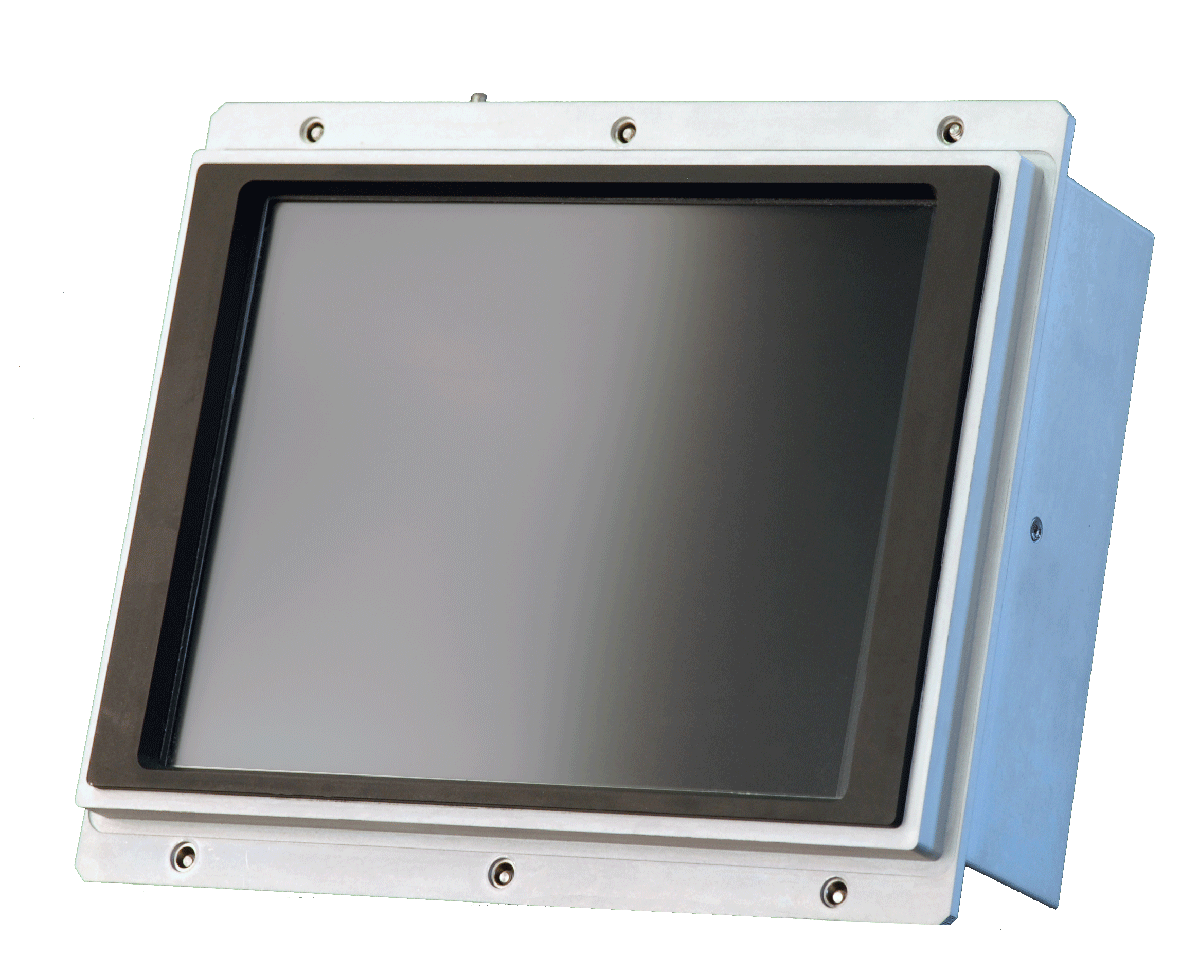

Data Terminal with touch control (AV6211-104-RM1)
The Softkey terminal allows RS232 commands from a remote computer to be used to draw and array of control buttons with user defined text inside . A touch screen controller relays touch commands over the same RS232 port to indicate a button selection. The unit has colour capability and a hierarchical menu structure which enables custom multiple pages and colour buttons to be designed.

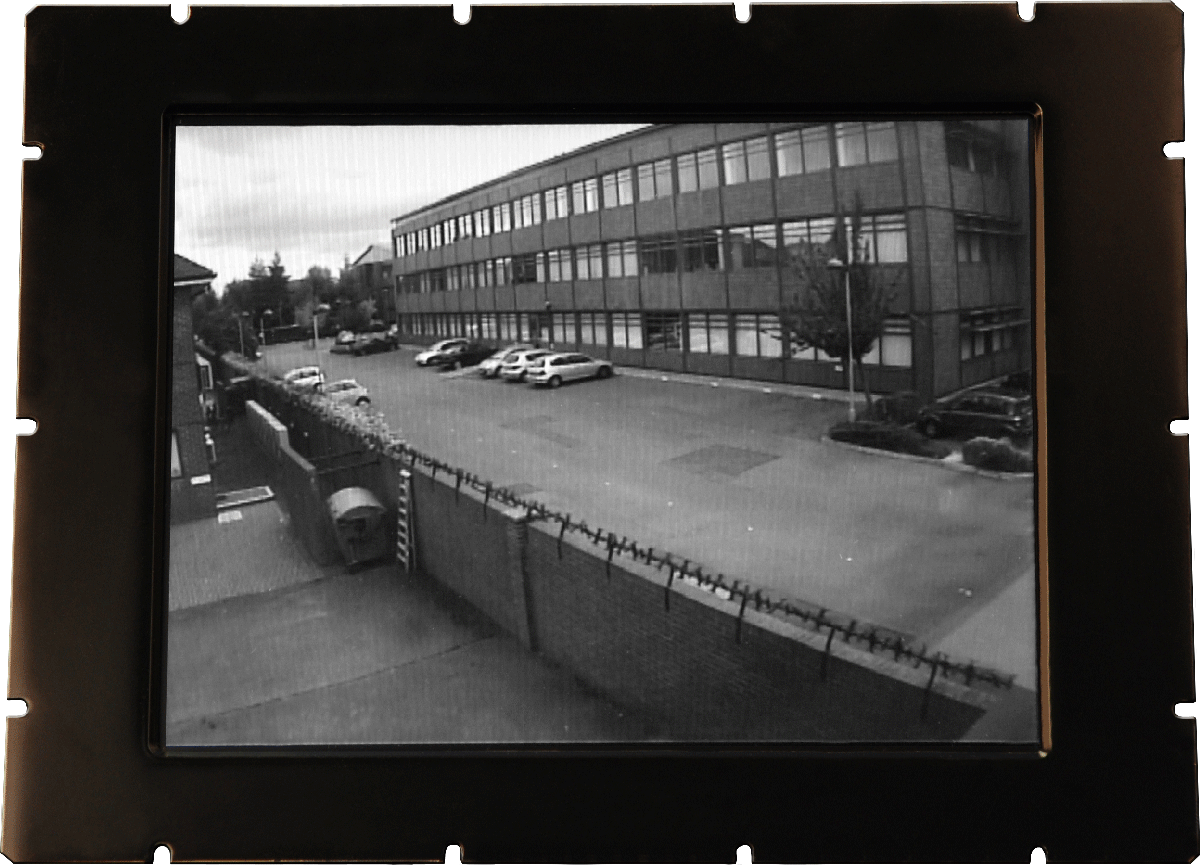

Video Camera display terminal (AV6011-104-BM1)
This unit offers a compact and rugged display for viewing PAL/NTSC images from a camera or any other compatible source. The unit has a built-in test pattern display which outputs PAL test images.

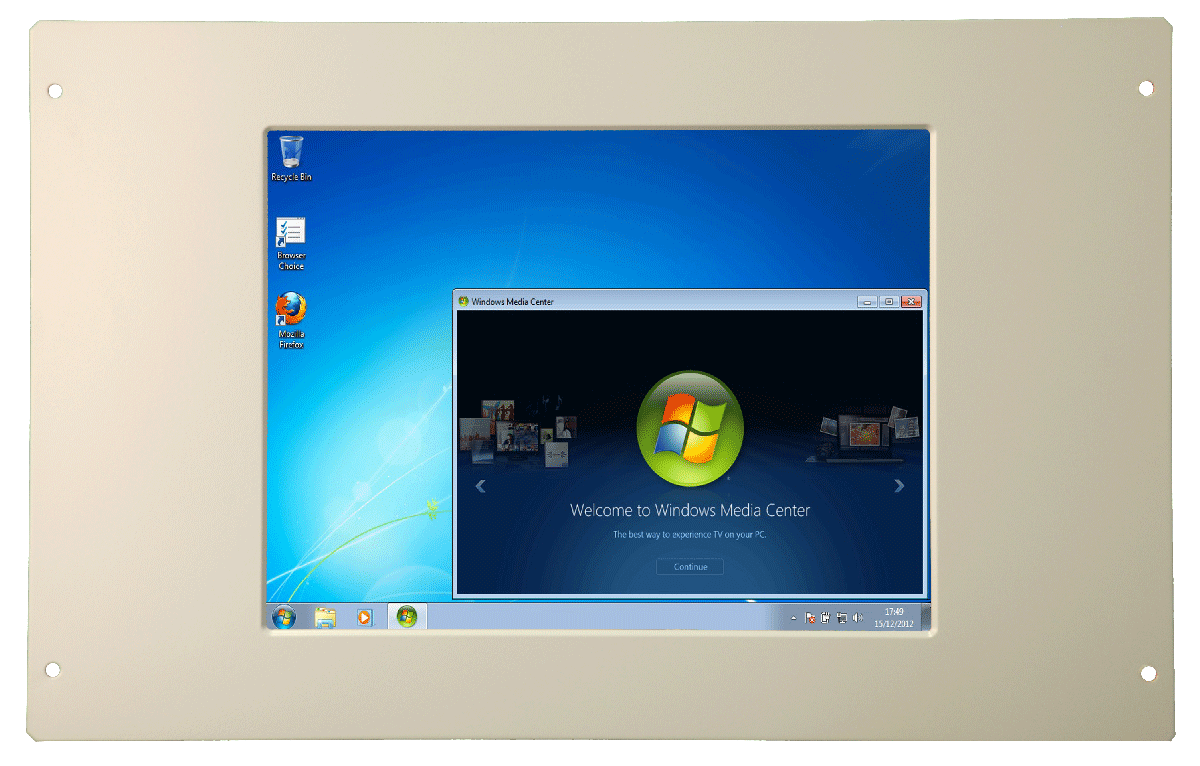

Computer display terminal (AV6511-104-BM1)
This unit offers a compact and rugged display for viewing VGA/DVI images from a CPU or any other compatible source.
For more display solutions please see here.
Click here for product ordering and more information
|
