GiGE Vision Encoders

Advanced Vision Technology offers a range of rugged GigE Vision solutions. Our encoder products allow HD-SDI, DVI, CVBS or CameraLink inputs from cameras our other sources to be converted into a GigE Vision stream and distributed over a 1G ethernet link.

Using our custom fpga streaming engine ultra low latencies are realised. With the image being transfered from the input interface to the ethernet interface without any processor intervention ensures no processor delays. This allows our latency figure to be about 2-3 video lines.

The light weight processor is based on an Arm arcitecture running Linux allowing fast boot-up times and reliable operation.

A number of additional interfaces are available such as RS422/RS232 control and optically isolated inputs and outputs all controllable over the GigE Vision ethernet link. This allows a complete system solution to be implemented with images and control information all maintained over a single ethernet channel.

For information on the encoder display solutions see here.


Vehicle video distribution
Autonomous vehicle control
Simulation streaming using DVI to GigE Vision data
UAV operation
High speed camera distribution
Remote surveillance control and monitoring

Highslide JS
Highslide JS
Highslide JS

GiGE Vision Encoder Products

Product Name Description Input Format Input Streams Output Streams GiGE Compliant Overview

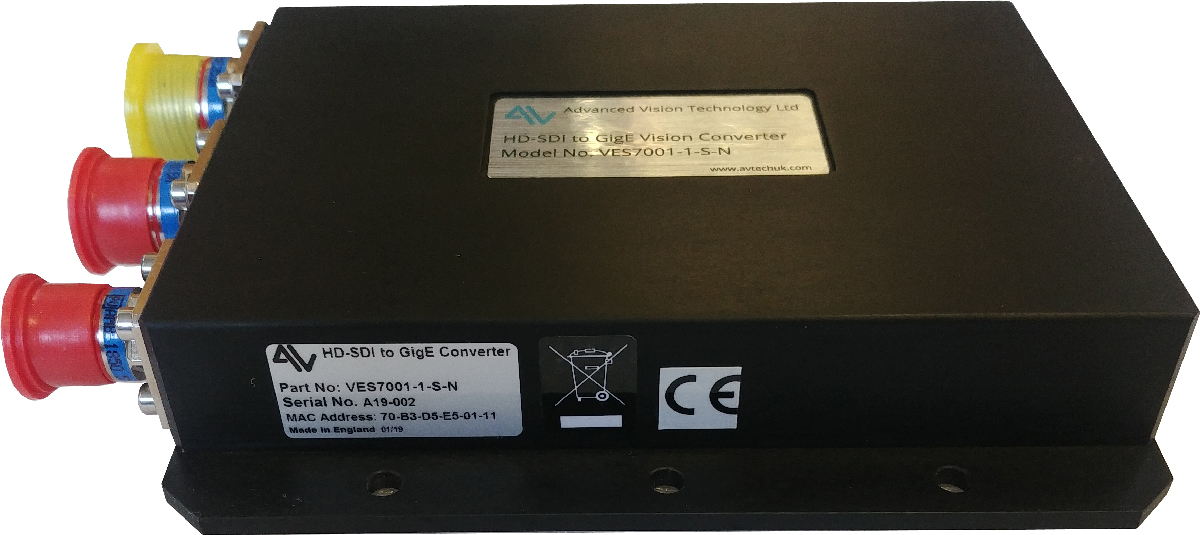

VES7001 SD-SDI / HD-SDI to GigE Vision Encoder SD-SDI / HD-SDI 1 1
VES7002 PAL / NTSC to GigE Vision Encoder PAL / NTSC 2 2
VES7003 CameraLink to GigE Vision Encoder CameraLink 1 1
VES7004 Quad DVI to GigE Vision Encoder DVI / HDMI 4 4
VES7005 Single DVI to GigE Vision Encoder DVI / HDMI 1 1

Click here to obtain products details about our GiGE Vision Encoder solutions.
